pip._vendor.pyparsing.diagram Namespace Reference

Data Structures
class	AnnotatedItem
class	ConverterState
class	EachItem
class	EditablePartial
class	ElementState

Functions
str	railroad_to_html (List[NamedDiagram] diagrams, embed=False, **kwargs)
T	resolve_partial ("EditablePartial[T]" partial)
List[NamedDiagram]	to_railroad (pyparsing.ParserElement element, typing.Optional[dict] diagram_kwargs=None, int vertical=3, bool show_results_names=False, bool show_groups=False)
bool	_should_vertical (int specification, Iterable[pyparsing.ParserElement] exprs)
bool	_worth_extracting (pyparsing.ParserElement element)
	_apply_diagram_item_enhancements (fn)
	_visible_exprs (Iterable[pyparsing.ParserElement] exprs)
typing.Optional[EditablePartial]	_to_diagram_element (pyparsing.ParserElement element, typing.Optional[EditablePartial] parent, ConverterState lookup=None, int vertical=None, int index=0, str name_hint=None, bool show_results_names=False, bool show_groups=False)

Variables
str	jinja2_template_source
	template = Template(jinja2_template_source)
	NamedDiagram
	T = TypeVar("T")

Function Documentation

_apply_diagram_item_enhancements()

_apply_diagram_item_enhancements (   fn )

protected

decorator to ensure enhancements to a diagram item (such as results name annotations)
get applied on return from _to_diagram_element (we do this since there are several
returns in _to_diagram_element)

Definition at line 395 of file __init__.py.

def _apply_diagram_item_enhancements(fn):
    """
    decorator to ensure enhancements to a diagram item (such as results name annotations)
    get applied on return from _to_diagram_element (we do this since there are several
    returns in _to_diagram_element)
    """

    def _inner(
        element: pyparsing.ParserElement,
        parent: typing.Optional[EditablePartial],
        lookup: ConverterState = None,
        vertical: int = None,
        index: int = 0,
        name_hint: str = None,
        show_results_names: bool = False,
        show_groups: bool = False,
    ) -> typing.Optional[EditablePartial]:
        ret = fn(
            element,
            parent,
            lookup,
            vertical,
            index,
            name_hint,
            show_results_names,
            show_groups,
        )

        # apply annotation for results name, if present
        if show_results_names and ret is not None:
            element_results_name = element.resultsName
            if element_results_name:
                # add "*" to indicate if this is a "list all results" name
                element_results_name += "" if element.modalResults else "*"
                ret = EditablePartial.from_call(
                    railroad.Group, item=ret, label=element_results_name
                )

        return ret

    return _inner



References i.

_should_vertical()

bool _should_vertical ( int  specification, Iterable[pyparsing.ParserElement]   exprs  )

protected

Returns true if we should return a vertical list of elements

Definition at line 234 of file __init__.py.

) -> bool:
    """
    Returns true if we should return a vertical list of elements
    """
    if specification is None:
        return False
    else:
        return len(_visible_exprs(exprs)) >= specification



References pip._vendor.pyparsing.diagram._visible_exprs(), and i.

Referenced by pip._vendor.pyparsing.diagram._to_diagram_element().

Here is the call graph for this function:

Here is the caller graph for this function:

_to_diagram_element()

typing.Optional[EditablePartial] _to_diagram_element ( pyparsing.ParserElement  element, typing.Optional[EditablePartial]  parent, ConverterState   lookup = None, int   vertical = None, int   index = 0, str   name_hint = None, bool   show_results_names = False, bool   show_groups = False  )

protected

Recursively converts a PyParsing Element to a railroad Element
:param lookup: The shared converter state that keeps track of useful things
:param index: The index of this element within the parent
:param parent: The parent of this element in the output tree
:param vertical: Controls at what point we make a list of elements vertical. If this is an integer (the default),
it sets the threshold of the number of items before we go vertical. If True, always go vertical, if False, never
do so
:param name_hint: If provided, this will override the generated name
:param show_results_names: bool flag indicating whether to add annotations for results names
:returns: The converted version of the input element, but as a Partial that hasn't yet been constructed
:param show_groups: bool flag indicating whether to show groups using bounding box

Definition at line 452 of file __init__.py.

) -> typing.Optional[EditablePartial]:
    """
    Recursively converts a PyParsing Element to a railroad Element
    :param lookup: The shared converter state that keeps track of useful things
    :param index: The index of this element within the parent
    :param parent: The parent of this element in the output tree
    :param vertical: Controls at what point we make a list of elements vertical. If this is an integer (the default),
    it sets the threshold of the number of items before we go vertical. If True, always go vertical, if False, never
    do so
    :param name_hint: If provided, this will override the generated name
    :param show_results_names: bool flag indicating whether to add annotations for results names
    :returns: The converted version of the input element, but as a Partial that hasn't yet been constructed
    :param show_groups: bool flag indicating whether to show groups using bounding box
    """
    exprs = element.recurse()
    name = name_hint or element.customName or element.__class__.__name__

    # Python's id() is used to provide a unique identifier for elements
    el_id = id(element)

    element_results_name = element.resultsName

    # Here we basically bypass processing certain wrapper elements if they contribute nothing to the diagram
    if not element.customName:
        if isinstance(
            element,
            (
                # pyparsing.TokenConverter,
                # pyparsing.Forward,
                pyparsing.Located,
            ),
        ):
            # However, if this element has a useful custom name, and its child does not, we can pass it on to the child
            if exprs:
                if not exprs[0].customName:
                    propagated_name = name
                else:
                    propagated_name = None

                return _to_diagram_element(
                    element.expr,
                    parent=parent,
                    lookup=lookup,
                    vertical=vertical,
                    index=index,
                    name_hint=propagated_name,
                    show_results_names=show_results_names,
                    show_groups=show_groups,
                )

    # If the element isn't worth extracting, we always treat it as the first time we say it
    if _worth_extracting(element):
        if el_id in lookup:
            # If we've seen this element exactly once before, we are only just now finding out that it's a duplicate,
            # so we have to extract it into a new diagram.
            looked_up = lookup[el_id]
            looked_up.mark_for_extraction(el_id, lookup, name=name_hint)
            ret = EditablePartial.from_call(railroad.NonTerminal, text=looked_up.name)
            return ret

        elif el_id in lookup.diagrams:
            # If we have seen the element at least twice before, and have already extracted it into a subdiagram, we
            # just put in a marker element that refers to the sub-diagram
            ret = EditablePartial.from_call(
                railroad.NonTerminal, text=lookup.diagrams[el_id].kwargs["name"]
            )
            return ret

    # Recursively convert child elements
    # Here we find the most relevant Railroad element for matching pyparsing Element
    # We use ``items=[]`` here to hold the place for where the child elements will go once created
    if isinstance(element, pyparsing.And):
        # detect And's created with ``expr*N`` notation - for these use a OneOrMore with a repeat
        # (all will have the same name, and resultsName)
        if not exprs:
            return None
        if len(set((e.name, e.resultsName) for e in exprs)) == 1:
            ret = EditablePartial.from_call(
                railroad.OneOrMore, item="", repeat=str(len(exprs))
            )
        elif _should_vertical(vertical, exprs):
            ret = EditablePartial.from_call(railroad.Stack, items=[])
        else:
            ret = EditablePartial.from_call(railroad.Sequence, items=[])
    elif isinstance(element, (pyparsing.Or, pyparsing.MatchFirst)):
        if not exprs:
            return None
        if _should_vertical(vertical, exprs):
            ret = EditablePartial.from_call(railroad.Choice, 0, items=[])
        else:
            ret = EditablePartial.from_call(railroad.HorizontalChoice, items=[])
    elif isinstance(element, pyparsing.Each):
        if not exprs:
            return None
        ret = EditablePartial.from_call(EachItem, items=[])
    elif isinstance(element, pyparsing.NotAny):
        ret = EditablePartial.from_call(AnnotatedItem, label="NOT", item="")
    elif isinstance(element, pyparsing.FollowedBy):
        ret = EditablePartial.from_call(AnnotatedItem, label="LOOKAHEAD", item="")
    elif isinstance(element, pyparsing.PrecededBy):
        ret = EditablePartial.from_call(AnnotatedItem, label="LOOKBEHIND", item="")
    elif isinstance(element, pyparsing.Group):
        if show_groups:
            ret = EditablePartial.from_call(AnnotatedItem, label="", item="")
        else:
            ret = EditablePartial.from_call(railroad.Group, label="", item="")
    elif isinstance(element, pyparsing.TokenConverter):
        label = type(element).__name__.lower()
        if label == "tokenconverter":
            ret = EditablePartial.from_call(railroad.Sequence, items=[])
        else:
            ret = EditablePartial.from_call(AnnotatedItem, label=label, item="")
    elif isinstance(element, pyparsing.Opt):
        ret = EditablePartial.from_call(railroad.Optional, item="")
    elif isinstance(element, pyparsing.OneOrMore):
        ret = EditablePartial.from_call(railroad.OneOrMore, item="")
    elif isinstance(element, pyparsing.ZeroOrMore):
        ret = EditablePartial.from_call(railroad.ZeroOrMore, item="")
    elif isinstance(element, pyparsing.Group):
        ret = EditablePartial.from_call(
            railroad.Group, item=None, label=element_results_name
        )
    elif isinstance(element, pyparsing.Empty) and not element.customName:
        # Skip unnamed "Empty" elements
        ret = None
    elif isinstance(element, pyparsing.ParseElementEnhance):
        ret = EditablePartial.from_call(railroad.Sequence, items=[])
    elif len(exprs) > 0 and not element_results_name:
        ret = EditablePartial.from_call(railroad.Group, item="", label=name)
    elif len(exprs) > 0:
        ret = EditablePartial.from_call(railroad.Sequence, items=[])
    else:
        terminal = EditablePartial.from_call(railroad.Terminal, element.defaultName)
        ret = terminal

    if ret is None:
        return

    # Indicate this element's position in the tree so we can extract it if necessary
    lookup[el_id] = ElementState(
        element=element,
        converted=ret,
        parent=parent,
        parent_index=index,
        number=lookup.generate_index(),
    )
    if element.customName:
        lookup[el_id].mark_for_extraction(el_id, lookup, element.customName)

    i = 0
    for expr in exprs:
        # Add a placeholder index in case we have to extract the child before we even add it to the parent
        if "items" in ret.kwargs:
            ret.kwargs["items"].insert(i, None)

        item = _to_diagram_element(
            expr,
            parent=ret,
            lookup=lookup,
            vertical=vertical,
            index=i,
            show_results_names=show_results_names,
            show_groups=show_groups,
        )

        # Some elements don't need to be shown in the diagram
        if item is not None:
            if "item" in ret.kwargs:
                ret.kwargs["item"] = item
            elif "items" in ret.kwargs:
                # If we've already extracted the child, don't touch this index, since it's occupied by a nonterminal
                ret.kwargs["items"][i] = item
                i += 1
        elif "items" in ret.kwargs:
            # If we're supposed to skip this element, remove it from the parent
            del ret.kwargs["items"][i]

    # If all this items children are none, skip this item
    if ret and (
        ("items" in ret.kwargs and len(ret.kwargs["items"]) == 0)
        or ("item" in ret.kwargs and ret.kwargs["item"] is None)
    ):
        ret = EditablePartial.from_call(railroad.Terminal, name)

    # Mark this element as "complete", ie it has all of its children
    if el_id in lookup:
        lookup[el_id].complete = True

    if el_id in lookup and lookup[el_id].extract and lookup[el_id].complete:
        lookup.extract_into_diagram(el_id)
        if ret is not None:
            ret = EditablePartial.from_call(
                railroad.NonTerminal, text=lookup.diagrams[el_id].kwargs["name"]
            )

    return ret

References pip._vendor.pyparsing.diagram._should_vertical(), pip._vendor.pyparsing.diagram._to_diagram_element(), pip._vendor.pyparsing.diagram._worth_extracting(), and i.

Referenced by pip._vendor.pyparsing.diagram._to_diagram_element(), and pip._vendor.pyparsing.diagram.to_railroad().

Here is the call graph for this function:

Here is the caller graph for this function:

_visible_exprs()

_visible_exprs ( Iterable[pyparsing.ParserElement]  exprs )

protected

Definition at line 438 of file __init__.py.

def _visible_exprs(exprs: Iterable[pyparsing.ParserElement]):
    non_diagramming_exprs = (
        pyparsing.ParseElementEnhance,
        pyparsing.PositionToken,
        pyparsing.And._ErrorStop,
    )
    return [
        e
        for e in exprs
        if not (e.customName or e.resultsName or isinstance(e, non_diagramming_exprs))
    ]


@_apply_diagram_item_enhancements

References i.

Referenced by pip._vendor.pyparsing.diagram._should_vertical().

Here is the caller graph for this function:

_worth_extracting()

bool _worth_extracting ( pyparsing.ParserElement  element )

protected

Returns true if this element is worth having its own sub-diagram. Simply, if any of its children
themselves have children, then its complex enough to extract

Definition at line 386 of file __init__.py.

def _worth_extracting(element: pyparsing.ParserElement) -> bool:
    """
    Returns true if this element is worth having its own sub-diagram. Simply, if any of its children
    themselves have children, then its complex enough to extract
    """
    children = element.recurse()
    return any(child.recurse() for child in children)



References i.

Referenced by pip._vendor.pyparsing.diagram._to_diagram_element().

Here is the caller graph for this function:

railroad_to_html()

str railroad_to_html	(	List[NamedDiagram]	diagrams,
			embed = False,
		**	kwargs
	)

Given a list of NamedDiagram, produce a single HTML string that visualises those diagrams
:params kwargs: kwargs to be passed in to the template

Definition at line 137 of file __init__.py.

def railroad_to_html(diagrams: List[NamedDiagram], embed=False, **kwargs) -> str:
    """
    Given a list of NamedDiagram, produce a single HTML string that visualises those diagrams
    :params kwargs: kwargs to be passed in to the template
    """
    data = []
    for diagram in diagrams:
        if diagram.diagram is None:
            continue
        io = StringIO()
        try:
            css = kwargs.get('css')
            diagram.diagram.writeStandalone(io.write, css=css)
        except AttributeError:
            diagram.diagram.writeSvg(io.write)
        title = diagram.name
        if diagram.index == 0:
            title += " (root)"
        data.append({"title": title, "text": "", "svg": io.getvalue()})

    return template.render(diagrams=data, embed=embed, **kwargs)



References i.

resolve_partial()

T resolve_partial

(

"EditablePartial[T]"

partial

)

Recursively resolves a collection of Partials into whatever type they are

Definition at line 160 of file __init__.py.

def resolve_partial(partial: "EditablePartial[T]") -> T:
    """
    Recursively resolves a collection of Partials into whatever type they are
    """
    if isinstance(partial, EditablePartial):
        partial.args = resolve_partial(partial.args)
        partial.kwargs = resolve_partial(partial.kwargs)
        return partial()
    elif isinstance(partial, list):
        return [resolve_partial(x) for x in partial]
    elif isinstance(partial, dict):
        return {key: resolve_partial(x) for key, x in partial.items()}
    else:
        return partial



References i, and pip._vendor.pyparsing.diagram.resolve_partial().

Referenced by pip._vendor.pyparsing.diagram.resolve_partial(), and pip._vendor.pyparsing.diagram.to_railroad().

Here is the call graph for this function:

Here is the caller graph for this function:

to_railroad()

List[NamedDiagram] to_railroad	(	pyparsing.ParserElement	element,
		typing.Optional[dict]	diagram_kwargs = None,
		int	vertical = 3,
		bool	show_results_names = False,
		bool	show_groups = False
	)

Convert a pyparsing element tree into a list of diagrams. This is the recommended entrypoint to diagram
creation if you want to access the Railroad tree before it is converted to HTML
:param element: base element of the parser being diagrammed
:param diagram_kwargs: kwargs to pass to the Diagram() constructor
:param vertical: (optional) - int - limit at which number of alternatives should be
   shown vertically instead of horizontally
:param show_results_names - bool to indicate whether results name annotations should be
   included in the diagram
:param show_groups - bool to indicate whether groups should be highlighted with an unlabeled
   surrounding box

Definition at line 176 of file __init__.py.

) -> List[NamedDiagram]:
    """
    Convert a pyparsing element tree into a list of diagrams. This is the recommended entrypoint to diagram
    creation if you want to access the Railroad tree before it is converted to HTML
    :param element: base element of the parser being diagrammed
    :param diagram_kwargs: kwargs to pass to the Diagram() constructor
    :param vertical: (optional) - int - limit at which number of alternatives should be
       shown vertically instead of horizontally
    :param show_results_names - bool to indicate whether results name annotations should be
       included in the diagram
    :param show_groups - bool to indicate whether groups should be highlighted with an unlabeled
       surrounding box
    """
    # Convert the whole tree underneath the root
    lookup = ConverterState(diagram_kwargs=diagram_kwargs or {})
    _to_diagram_element(
        element,
        lookup=lookup,
        parent=None,
        vertical=vertical,
        show_results_names=show_results_names,
        show_groups=show_groups,
    )

    root_id = id(element)
    # Convert the root if it hasn't been already
    if root_id in lookup:
        if not element.customName:
            lookup[root_id].name = ""
        lookup[root_id].mark_for_extraction(root_id, lookup, force=True)

    # Now that we're finished, we can convert from intermediate structures into Railroad elements
    diags = list(lookup.diagrams.values())
    if len(diags) > 1:
        # collapse out duplicate diags with the same name
        seen = set()
        deduped_diags = []
        for d in diags:
            # don't extract SkipTo elements, they are uninformative as subdiagrams
            if d.name == "...":
                continue
            if d.name is not None and d.name not in seen:
                seen.add(d.name)
                deduped_diags.append(d)
        resolved = [resolve_partial(partial) for partial in deduped_diags]
    else:
        # special case - if just one diagram, always display it, even if
        # it has no name
        resolved = [resolve_partial(partial) for partial in diags]
    return sorted(resolved, key=lambda diag: diag.index)



References pip._vendor.pyparsing.diagram._to_diagram_element(), i, and pip._vendor.pyparsing.diagram.resolve_partial().

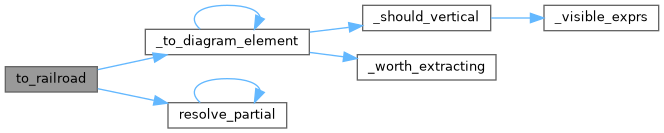

Here is the call graph for this function:

Variable Documentation

jinja2_template_source

str jinja2_template_source

Definition at line 20 of file __init__.py.

NamedDiagram

NamedDiagram

Initial value:

=  NamedTuple(
    "NamedDiagram",
    [("name", str), ("diagram", typing.Optional[railroad.DiagramItem]), ("index", int)],
)

Definition at line 58 of file __init__.py.

T

T = TypeVar("T")

Definition at line 66 of file __init__.py.

template

template = Template(jinja2_template_source)

Definition at line 55 of file __init__.py.
